Hot Dip Galvanized W10.5ft Construction Fence Panels for Safety
Temp Construction Fence Introduction
Canada construction fence is also called portable fence, security fence, or construction fence. We have the choices of colours and finishes that you are looking for and have the products you need.The materila:galvanized tube,galvanized wire,black wire.
Temp Construction Fence Specifications
Our standard panels are available in 6'H x 9.5'L or 6'H x 10'L panels with either powder coated
or hot dipped galvanized finished, but we can customize quickly for any size, color or finish to
perfectly suit your needs at the best available price.
Powder coated Temporary Fence specification |
| Fence Height | 4ft,6ft,8ft |
| Fence width/Length | 9.5ft,9ft,10ft |
| Wire Diameter | 3mm,3.2mm,3.5mm,4mm etc |
| Mesh Hole | 50*100mm(2''*4''),75*100mm,55*110mm,etc |
| Frame square tube | 25*25mm,30*30mm |
| Horizontal Square tube | 20*20mm,25*25mm, |

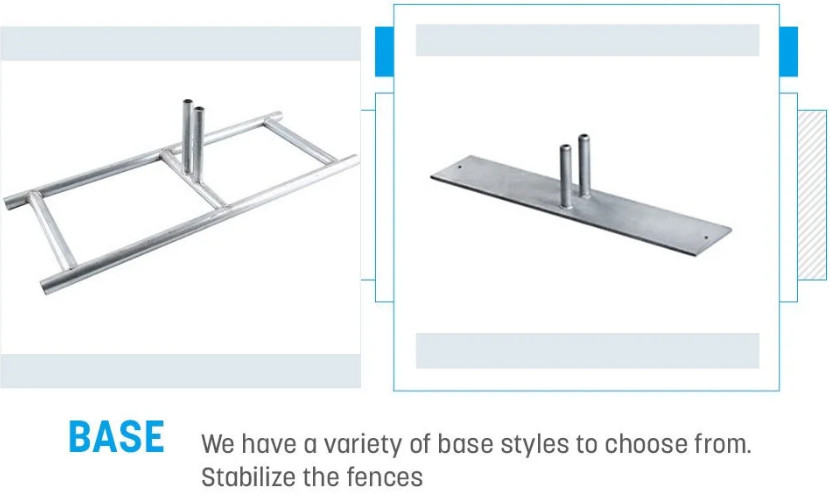

| Fence feet | 863*89*8mm,750*100*7mm,etc |

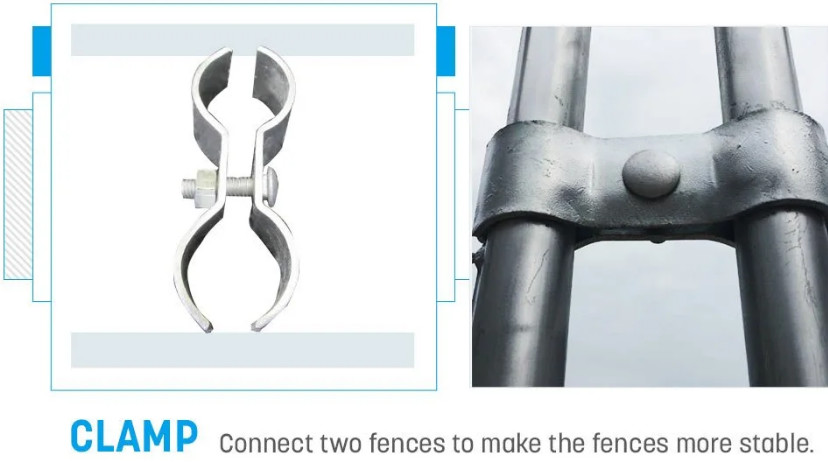

| Accessary | Top clip to connect two panel together |
| Raw material | electro galvanized,or pre-hot dipped galvanized |
| surface treatment | Epoxy polyester powder coated or fully hot dipped galvanized |
| Coated color | yellow,orange,red,blue,green,black and grey etc. |
Temp Construction Fence Features
1) Simple structure in linear type ,easy in installation and maintenance.
2) All welding slag are cleared before coating to insure fence smooth surface.
3) Industry-renowned AkzoNobel powder for coating.
4) Powder stick to fence surface and won't be peeled off within 10 years
Packing terms
1. Panel and plastic feet all packing with the pallet (steel pallet)
2. Panel bulk and the plastic feet packing with pallet
3. Clips packing in the carton box
Quality Control Process
1. Raw material test the Zn/Ai
2. Semi-finished product test the size and quality
3. Finished Product’s Test the surface adhesive force (usually the post surface test )
4. Finished Product’s installation

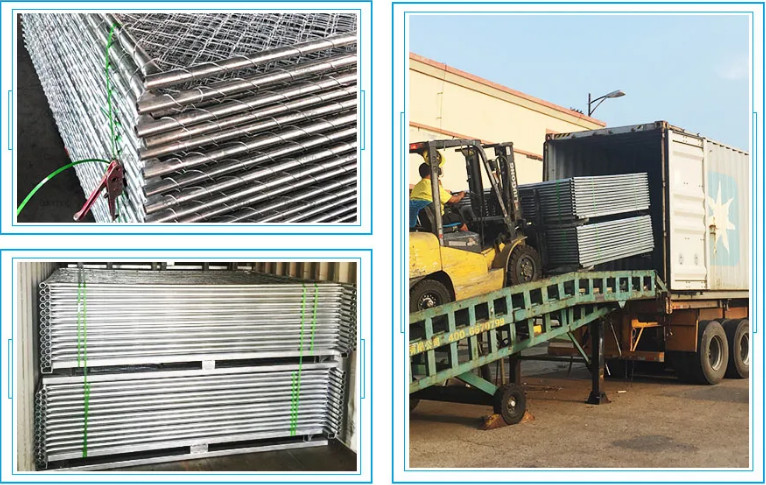

Temp Construction Fence Packing
1. Panel and plastic feet all packing with the pallet (steel pallet)
2. Panel bulk and the plastic feet packing with pallet
3. Clips packing in the carton box
