Farm And Field Galvanized Steel Wire Fencing Products Farm Diamond Chain Link Fence
Diamond Chain Link Fence Description
Chain link fencing, also known as cyclone wire fencing is a cost effective, secure and durable choice in permanent fencing that serves a wide range of applications.
chain link fence is made of high quality hot-dip galvanized (or PVC coated) low carbon steel wire, and woven by advanced automatic equipment. It has fine rust-resistant, mainly used as safety fence for house, building, breeding of poultry and so on.
Diamond Chain Link Fence Specification
Material | Low carbon steel, Hot galvanized steel |
Wire Dia. | hot galvanized steel wire: 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm pvc coated steel wire: 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm |
Mesh size | 50 x 50mm, 60 x 60mm, 70 x 70mm |
Rail size | OD42mm, OD48mm, OD60mm |
Post size | OD48mm, OD60mm, OD76mm |
Hight | 1000/1200/1500/1800/2000/2100/2500mm |
Post distance | 2000mm, 2500mm, 3000mm |
panel processing | style |
flat top, bending top |
Optional accessories | barbed wire, razor barbed wire, tension bar, tension band, brace band, post cap, tension wire, winding bracket, sleeve and so on |
Surface treatment | hot dipped galvanized; PVC coated, powder coated |
Chain link fence Features
Excellent Security - provides constant security against tresspassers, pilferers and animals
Long Term Durability - stands up to rugged conditons and requires minimal maintenance
Easily extended - additional fencing can be matched with the original for future extensions.
Readily relocated - chainwire fences have a high recovery rate, and can be relocated as the extension of premises demands.
Highly flexible - can be easily fitted around building columns, roof trusses, air conditioning ducts and hot water services.
Galvanised & LifeMax wire - ensures long life and low maintenance.
PVC coating - chainwire is available in black or green to blend with the environment
NOTES:
1. Height: the height of the chain link fence.
2. Width: the distance between two chain link fence posts, measure from center to center.
3. Wire Thickness: the diameter of the chain link fences wire after PVC coated.
4. Mesh Size: the edge length of the mesh
5. Flat Bar: a flat bar for making chain link mesh straight in vertical.
6. Post Cap: a small tool for covering on top of the post, in order to prevent the rain fall in to the post
7. Pre - Hot Dipped Galvanized: the wire material already been hot dipped galvanized before producing the chain link fences. The zinc layer of pre - hot dipped galvanized is lower than hot dipped galvanized.
8. Electric Galvanized + PVC Coated: electric galvanized (zinc coating 8~12g) as a pre - surface treatment inside, then use PVC coated layer outside to prevent the chain link fences from getting rusty.
Installation details

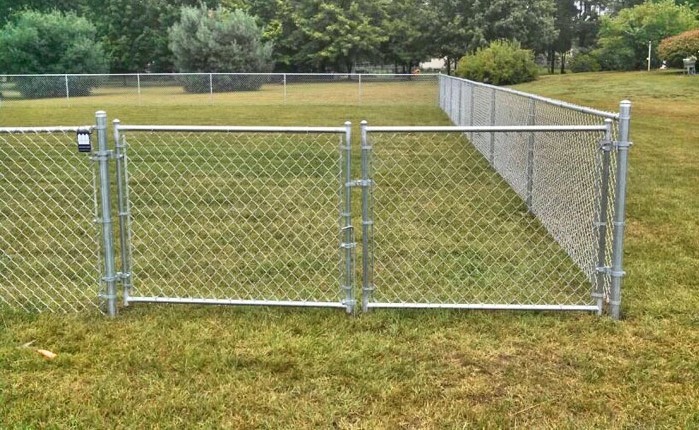

Chain link fence Application
1. Used in industry, agriculture, construction, breeding, transport, mining exploitation, transport, entertainment facilities and other public places. For example, stainless steel welded mesh is used as security or isolation fencing for pedestrians' pavement, transport center and other public places.
2. Used as cover to protect machines, cage for equipment, support for cable and pipe, cover for fans and ventilation devices.
3. Used in horticulture industry as tree guards, plant protection or fence to restrain goat, horse, cow and other live stocks.
